BLUETTI AC200P + 2*PV350 | Solar Generator Kit

FAQS

• Q1: How can I connect AC200P with B230 or B300 expansion battery?

  A:

  You can connect 1 B230 or B300 battery pack with AC200P via the P090D to XT90 cable*.

  * Sold separately

• Q2: Does AC200P support BLUETTI App control?

  A:

  No.

• Q3: Can I use AC200P as a UPS?

  A:

  No.

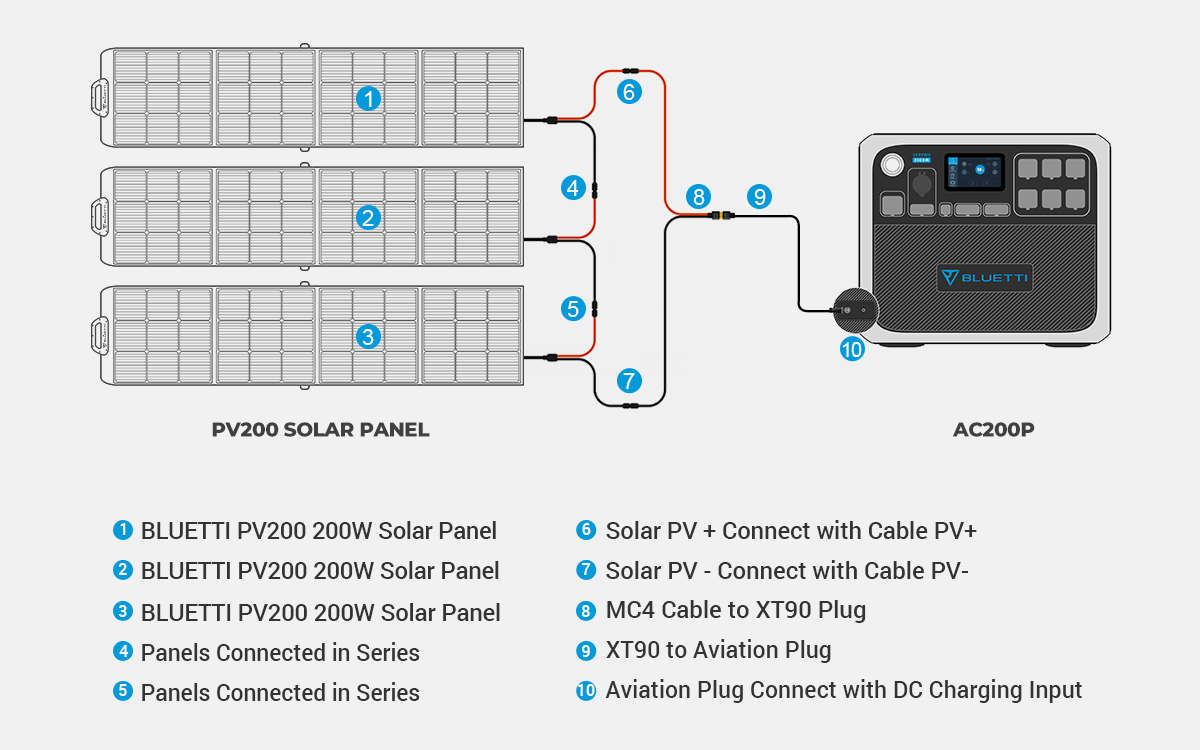

• Q4: What kind of solar panels should I choose for AC200P?

  A:


  PV input requirements for AC200P:
  Open Circuit Voltage: 35-150V
  Input Power: 700W Max.
  Include MC4 connectors.

  Highly Recommended:
  5x BLUETTI PV120: ≈4hrs.
  3x BLUETTI PV200: ≈4hrs.
  2x BLUETTI PV350: ≈3.6hrs.
  * For reference ONLY.

• Q5: Does AC200P support 240V Split Phase Bonding?

  A:

  No.

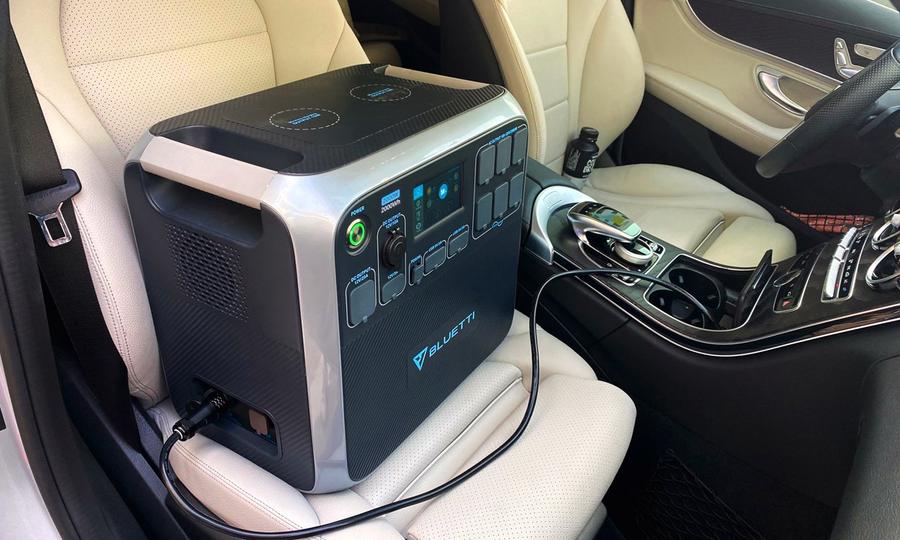

• Q6: How soon will the AC200P be fully charged by car charging?

  A:

  18hrs @12V and 9hrs @24V.

• Q7: Can I use or charge AC200P in sub-zero temperatures?

  A:

  Temperature ranges for AC200P are:
  Charge: 0-40℃ (32-104℉);
  Discharge: -20-40℃ (-4-104℉);
  Storage: -20-40℃ (-4-104℉).
  Technically, it can power electrical devices under such situations, but please avoid charging it.

• Q8: How do I know whether my appliance can work well with the AC200P?

  A:

  Calculate the total wattage of your devices. AC200P should work if the load doesn't exceed its rated 2,000W.

• Q9: How long can it run my device?

  A:

  Running time = Battery capacity × DoD × η ÷ Device rated power DoD refers to Depth of Discharge and η is local inverter efficiency. For AC200P, both DoD and η are 90%. If you run a 1,000W microwave oven with it, the running time will be:
  2,000Wh × 90% × 90% ÷ 1,000W ≈ 1.6hrs
  Note:
  1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
  2) The above data is for reference ONLY.

• Q10: Can it be laid on its side to save space?

  A:

  No. Long-term placement will make the internal structure loose, it is recommended to place the machine upright

• Q11: Is it possible to replace the built-in battery?

  No. If the battery pack is faulty or even dead, please contact BLUETTI Customer Service.

• Q12: What is the difference between the AC200MAX and AC200P?

  The main differences are:
  1. Output power and capacity: 2000W AC power and 2048Wh capacity for AC200MAX, while 2000W and 2000Wh for AC200P.
  2. Max. Input: 1400W for AC200MAX, while 1200W for AC200P.
  3. Output Port: AC200MAX has a 12V/30A NEMA TT-30 port.
  4. App Control: AC200MAX supports BLUETTI App control.

• Q13: What is the minimum number of solar panels that need to be connected?

  Because the AC200P supports the voltage range of 35-150v for solar panel charging, the total open circuit voltage of the solar panel needs to be above 35v. The minimum solar panels you need to buy are: PV120(2PCS), PV200 (2PCS), PV350 (1PCS)
